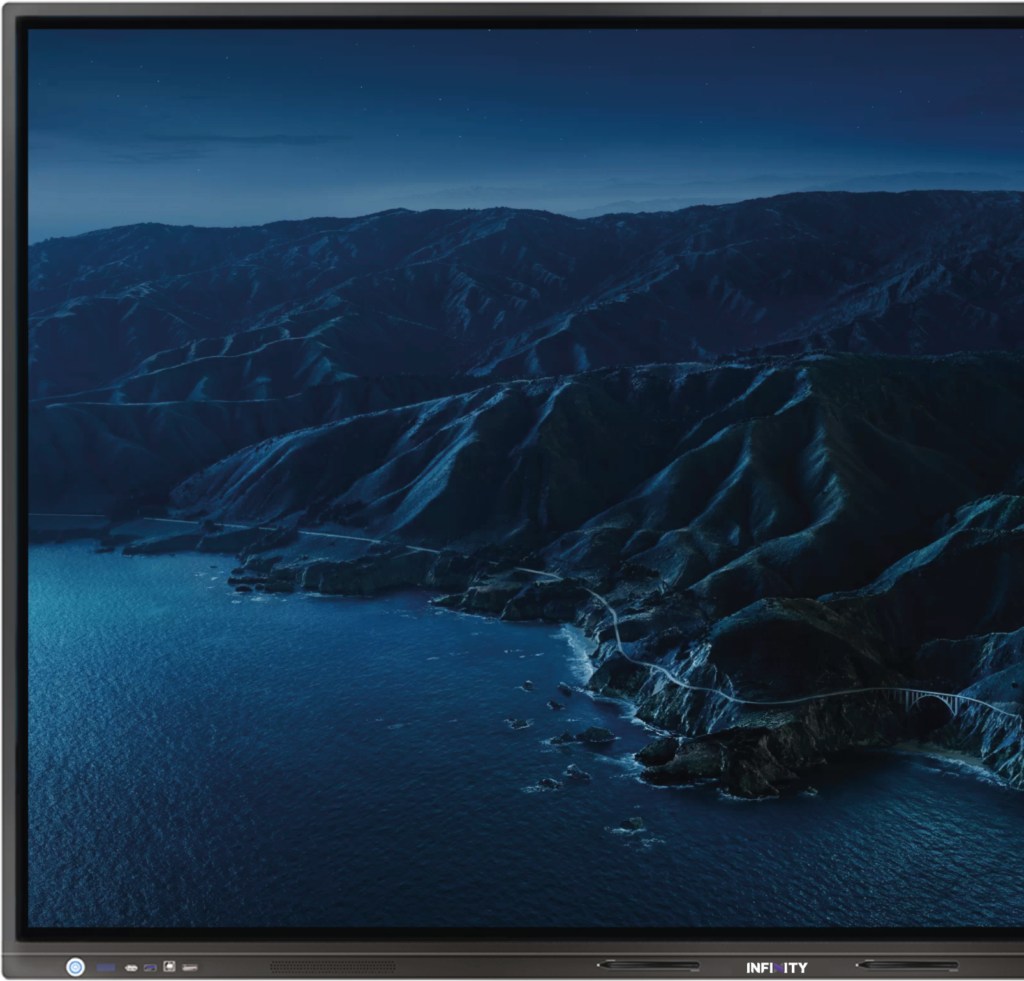

InfinityPro Interactive Display
Take Collaboration To The Next Level
Available in 55′ – 110″ sizes—all in 4K Ultra HD resolution
UHD 4K RESOLUTIONS
4K
3840 x 2160
Enjoy a smooth and
seamless writing experience
multiple users write, edit, and draw
onscreen for a productive and team-focused
presentation experience.
Multi-Touch
With the InfinityPro Interactive Display, up to 40 touches can write or edit at the same time for simultaneous collaboration and productive group work.

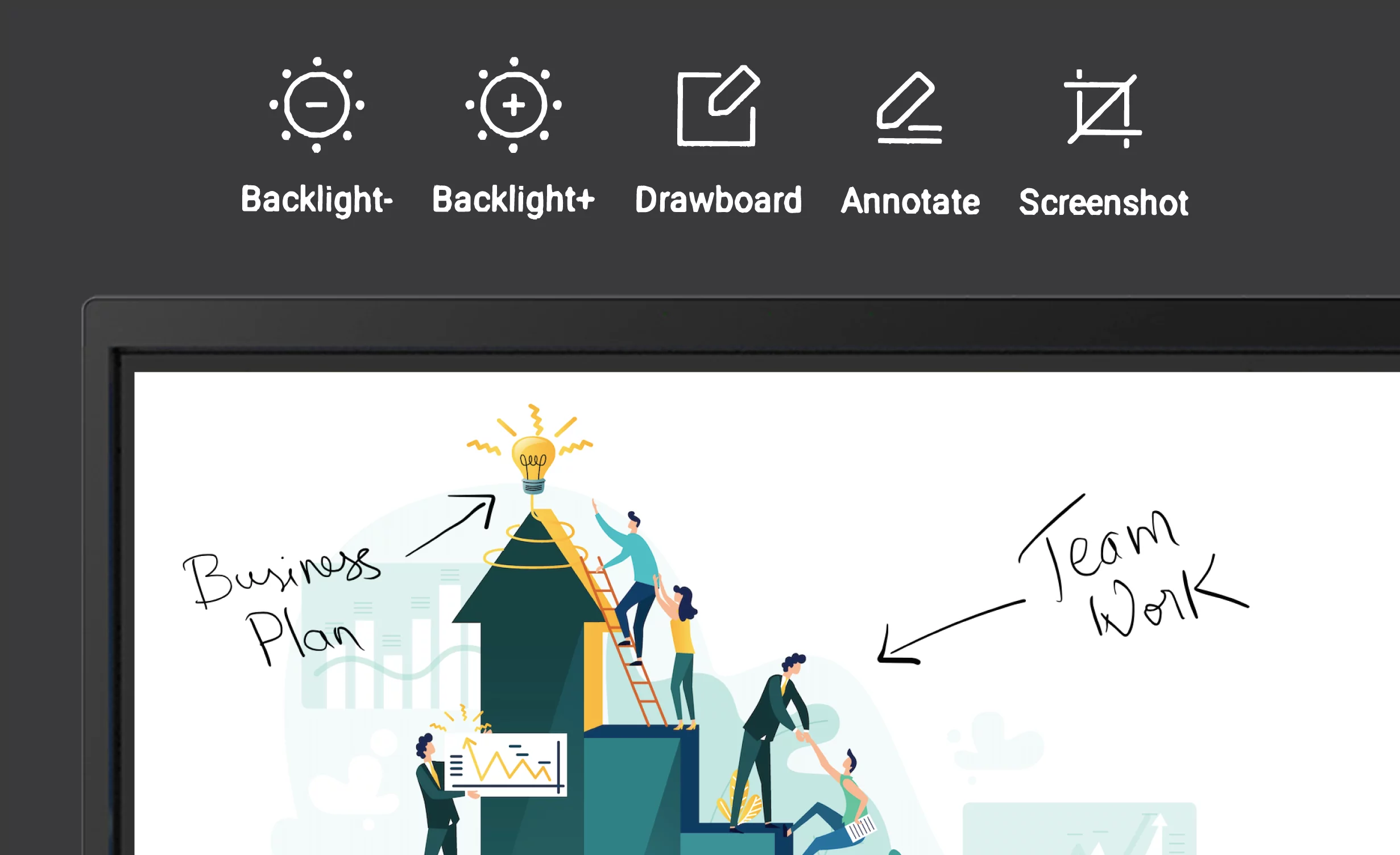

Image Editing
Quickly and easily select, move, crop, capture and edit your images with the click of a button.
Google Play Store

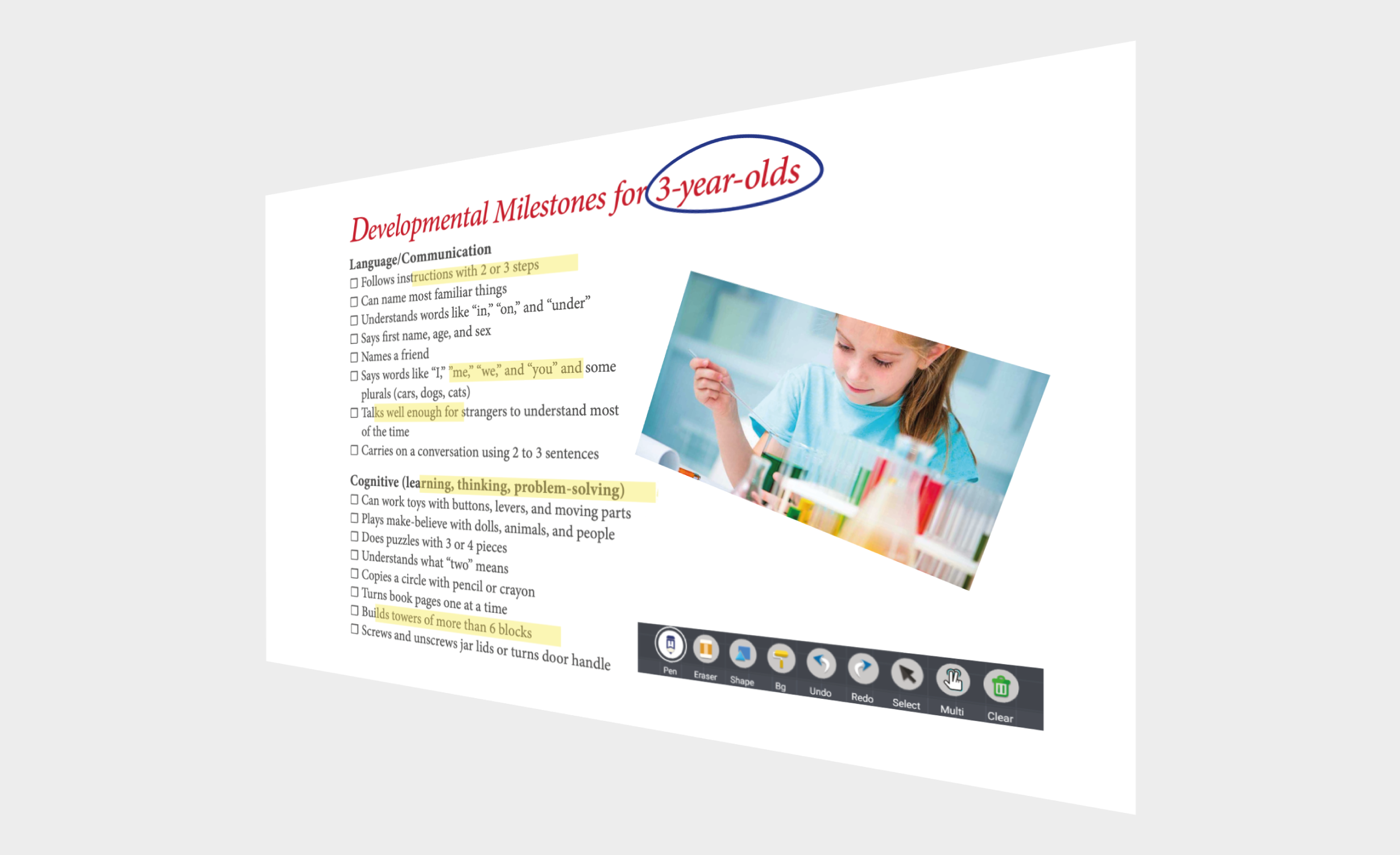

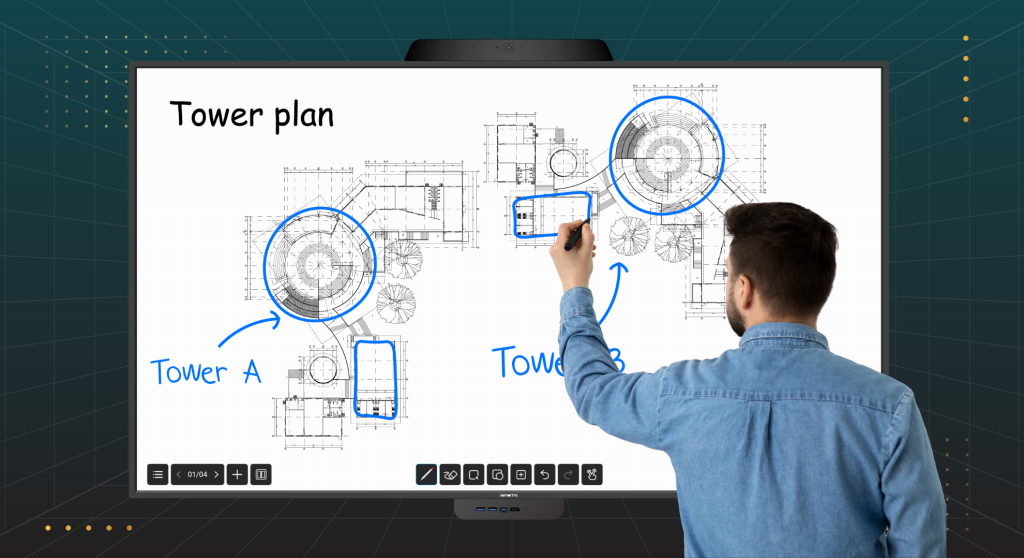

Easy Annotation
With InfinityPro interactive displays, users can easily annotate, save and share documents with other users for a collaborative learning experience.
Intuitive Document Viewer
Open Microsoft Word, PowerPoint, Excel and Adobe PDF files directly with a built-in document viewer, offering easy access to any file during presentations.

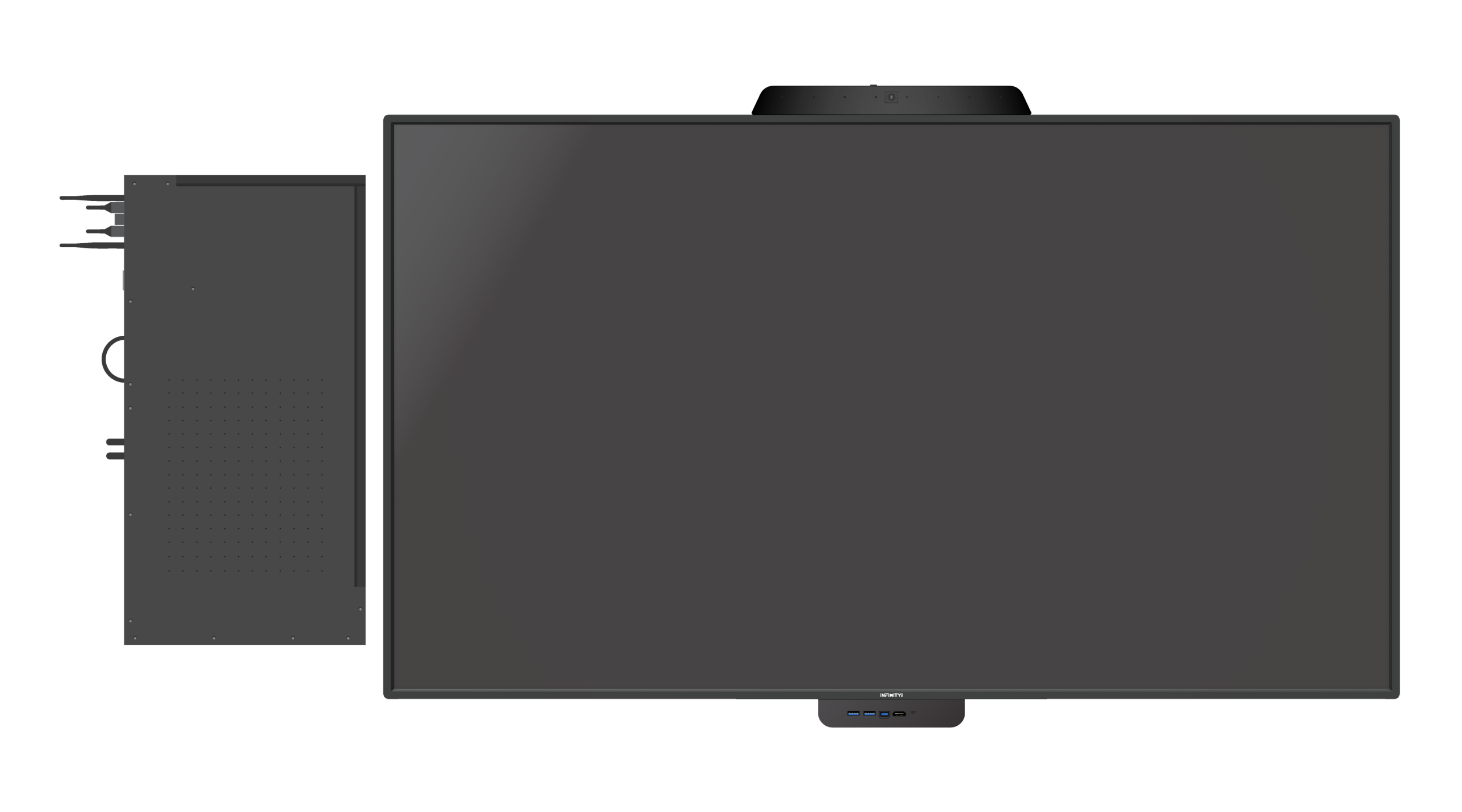

Open Pluggable Slot (OPS)
The InfinityPro Interactive Display provides a slot for an optional slot-in PC.

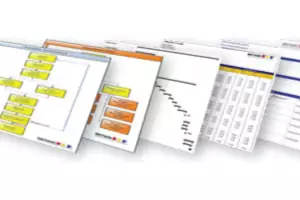

Templates and Tools
The InfinityPro Interactive Display includes a variety of templates and productivity tools, such as timetables. calendars and strategy boards.
Connectivity
Do more with the InfinityPro Interactive Display’s connection options “USB, HDMI, VGA, NFC, OPS slot”.
Wi-Fi Connectivity
With 5G Wi-Fi / HotSpot, searching the web is quick and fast.

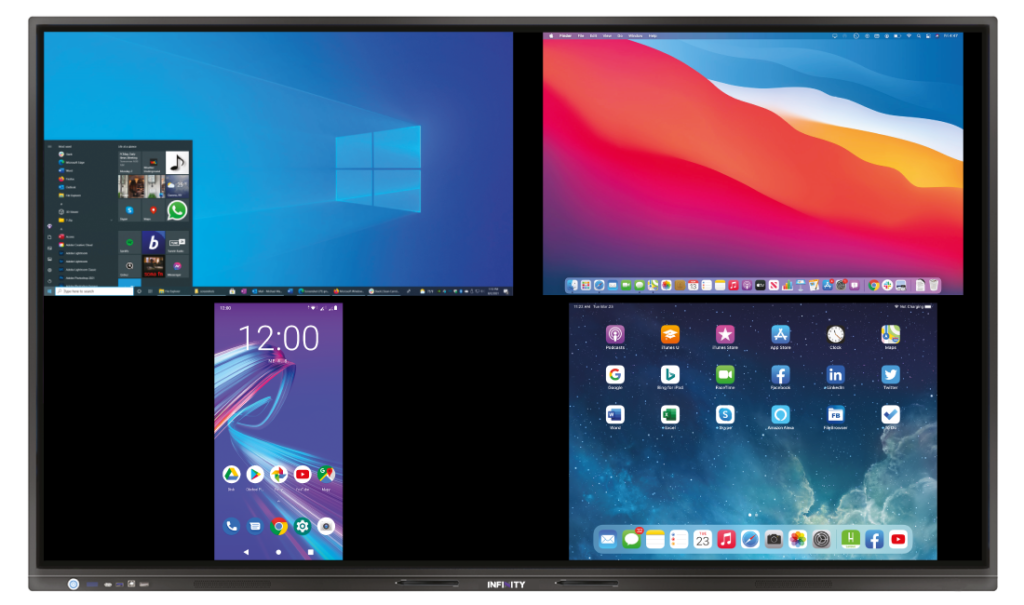

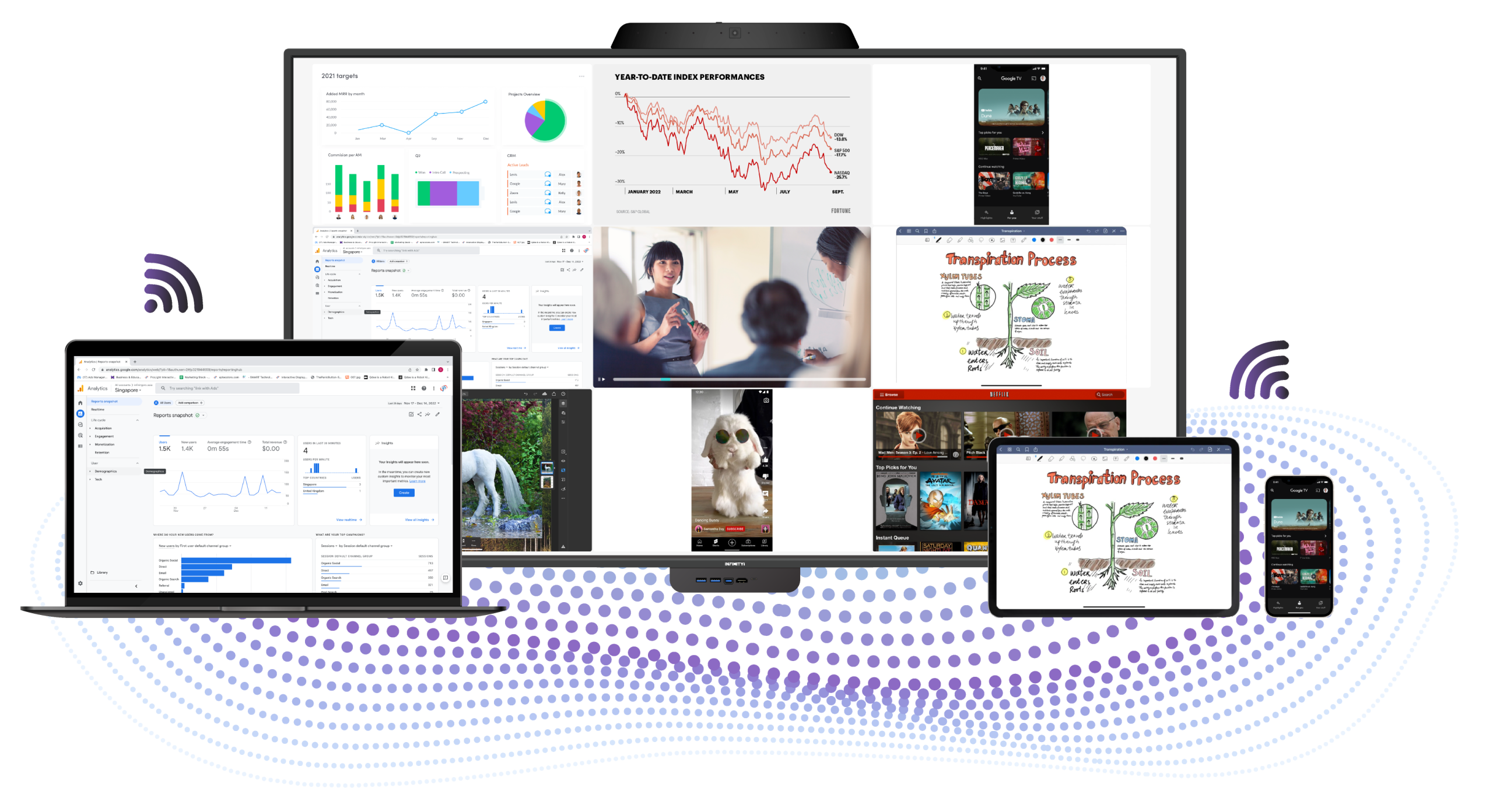

Seamless Wireless Screen Sharing From Any Device
- Windows
- macOS
- iOS
- Android
- Cable-free screen sharing from your phone, tablet or laptop
- Plug and play to screen mirror your device screen
- Wireless screen share via AirPlay, Chromecast and DLNA
- Compatible with Windows, macOS, iOS and Android

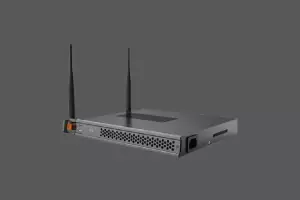

OPS Slot-in PC (Optional)

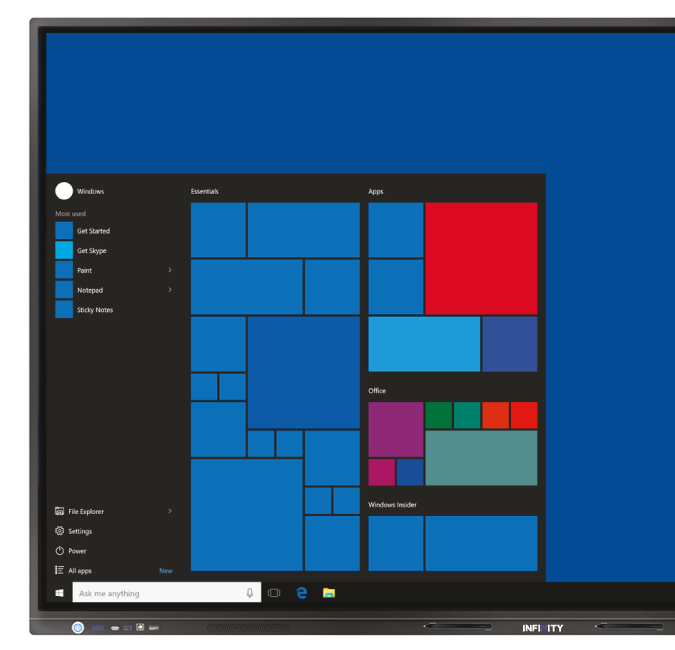

The InfinityPro Interactive Flat Panel provides a slot for an optional slot-in PC. PC with Windows 10/11 (OPS) let users to displays multiple applications without the need for external devices such as laptops or phones.
i5/i7
4-32GB
128-1TB

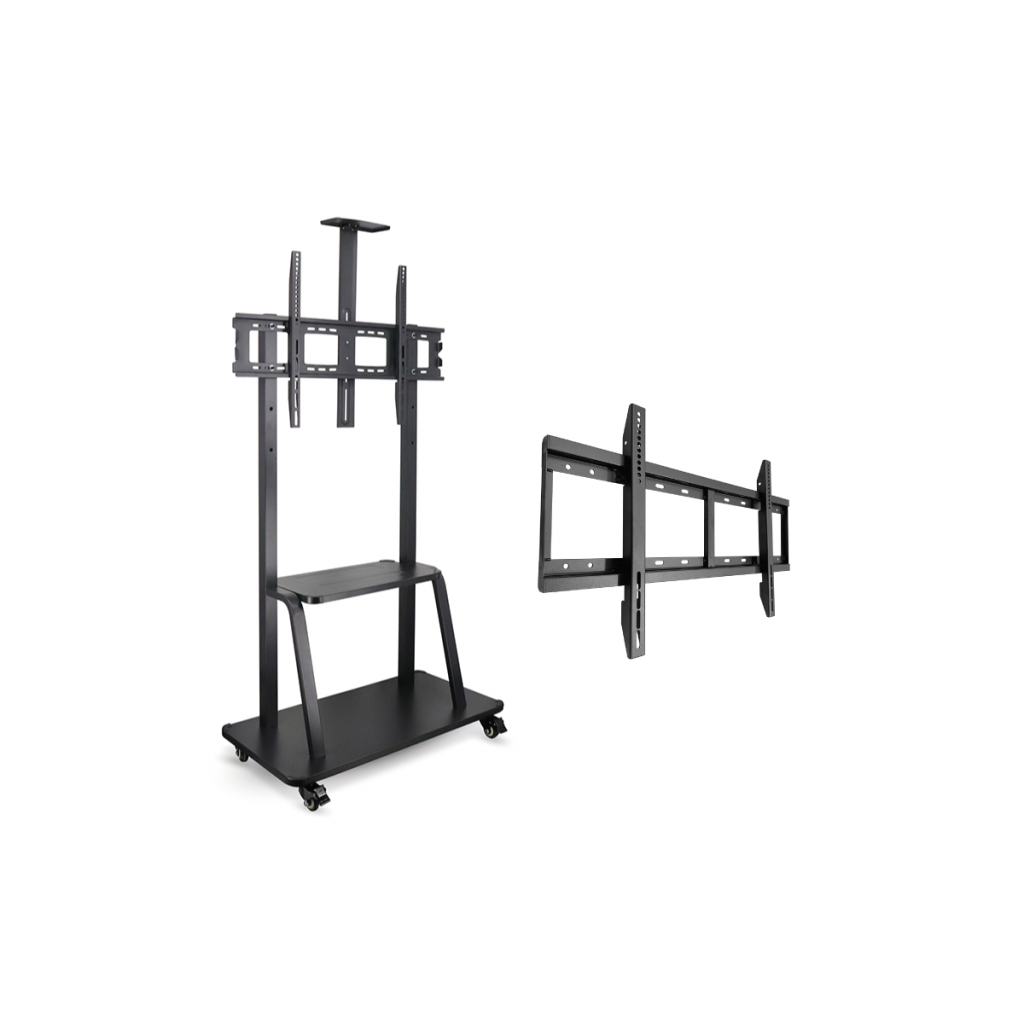

Installation
The InfinityPro Display can either be wall-mounted to save flooring space or fix to a portable mobile stand for easy repositioning.
Central Service System (CSS) with InfinityPro Interactive Display for complete device control
Specifications
55", 65", 75", 86, 98", 110"
3840 x 2160
50,000 hours
5,000:1
| LCD Panel Parameter | |
| Panel Size | 55 Inch, 65 Inch, 75 Inch, 86 Inch, 98 Inch, 110 Inch |
| Active Area | 1209.6mm(W ) × 680.4mm(H) |
| Model | X Series |
| Max. Brightness | 450cd/m2 |
| Max. Resolution | 3840*2160 |
| Contrast Ratio | 5000:1 |
| Panel Life | 50000 Hours |
| Responsive Time | 8ms |
| Viewing Angle | H178/V178 |
| Touch Panel Parameter (Optional) | |
| Touch Max Resolution | 4980*4980 |
| Touch Type | IR Touch |
| Touch point | 40 Touch Points |
| Transparency | > 90%, Up to 100% |
| Scanning Speed | >50Scans/S |
| Response Speed | <12ms |
| Communication | USB |
| Glass | Anti-glare |
| I/O | |

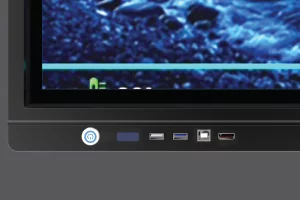

| Front interfaces | USB 1.0 x 1, PC USB 3.0 x 1, TOUCH USB x 1, HDMI IN x 1, POWER x 1, USB Type C x 1 |
| Speakers | 15W x 2 |
| Frame color | Black(Silver Optional) |
| Features | Support UHD Video, Pictures and Music |
| Set up time on/off | |
| Support Remote controller | |
| Support Media Format | MPEG1/2/4, AVI, RM, WMV, DAT, JPEG, BMP, PPT, WORD, EXCEL, TXT, MP3, RMVB, SWF etc. |
| Temperature | Storage:-20 Celsius Degree to 80 Celsius Degree |
| Working: -10 Celsius Degree to 65 Celsius Degree | |
|
Fixing Method |
Wall Mounting (Default)/ Floor Standing(Optional) |
| Dual System | |
| Android System | CPU: Dual-Core A73 And Dual-Core A53 1.5GHZ |
| GPU: G51MP | |
| RAM: 4GB DDR4 | |
| Memory: 32G EMMC | |
| Android System: Android 11 | |
| Wireless: WiFi 802.11 a/b/g/n/ac | |
| Bluetooth: Optional | |
| Connections: 2 x HDMI IN, 1 x Touch USB-B 1 x RJ45 IN, 1 x YPBPR IN, 1 x Earphone, 1 x AV IN, 1 x AV OUT, 1 x VGAIN, 1 x VGA AUDIO IN, 1 x RS232 Uart, 1 x Spdif OUT, 1 x USB 2.0, 1 x USB 3.0, TF (Optional), HDMI OUT (Optional) USB Type C (Optional) DP IN (Optional), RJ45 OUT (Optional), MIC*1 (Optional) | |
| OPS (OPTIONAL) | CPU: i3/i5/i7 |
| RAM: 4G/8G | |
| HDD: 128G SSD | |
| Graphic: Integrated | |
| WLAN: Atheros AR9285 802.11b/g/n/WIFI | |
| Power Supply | AC 110V-240V, 50HZ/60HZ |
| Carton Dimension | 1368 x 200 x 890 mm |
| GW | 35KG |
| whiteboard software | Free |
| Wireless display | Support |
| Accessories | Remote Control x 1, Touch Pen x 2, Wall Mount Bracket x 1, etc. |
| Applications | Meeting, Education, etc. |
| Certificate Approval | CE, RoHS, CCC, FCC, ISO9001 |
| Warranty | 5 Years |
Mac and Windows

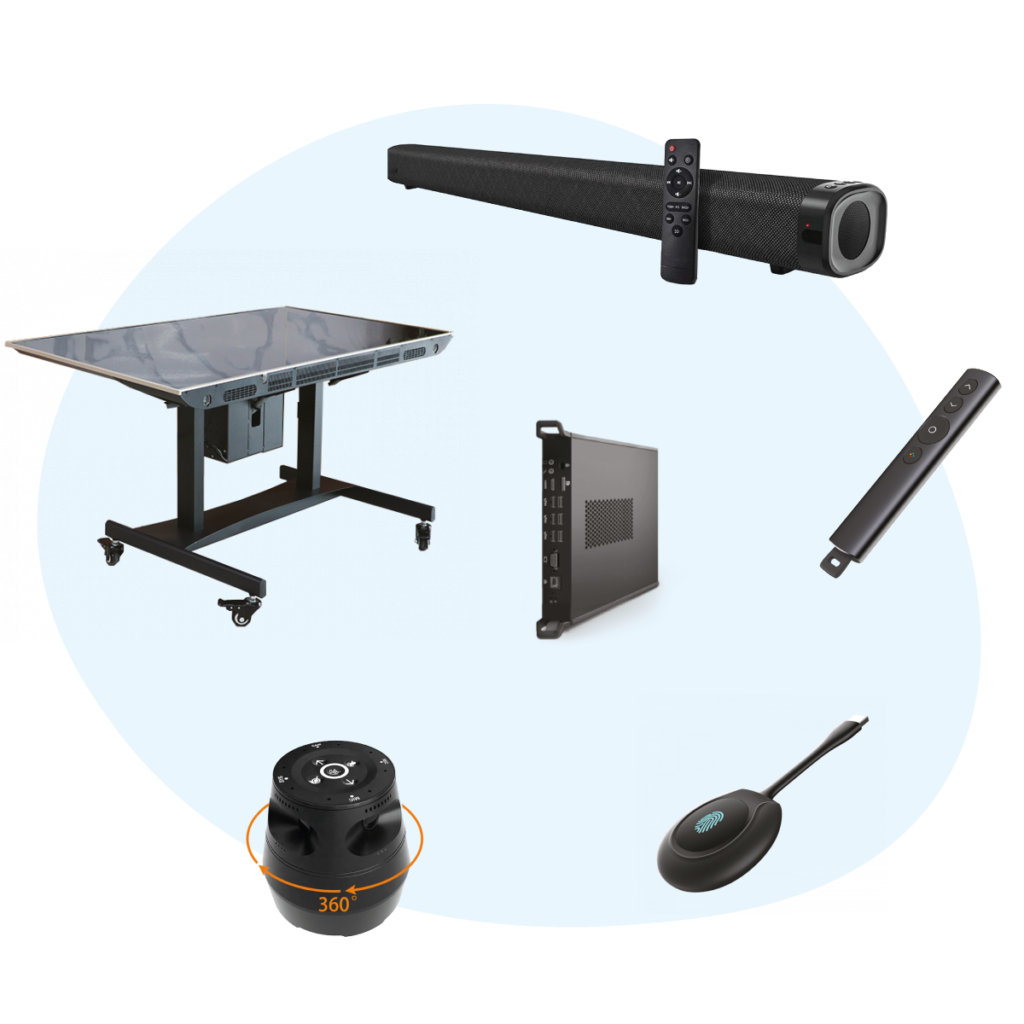

Customize with Accessories
Enhance your meeting room and classroom with InfinityPro accessories including the Camera, height-adjustable mobile stand, wall mount stand, OPS PC modules and Wireless Spotlight Presentation Remote.
